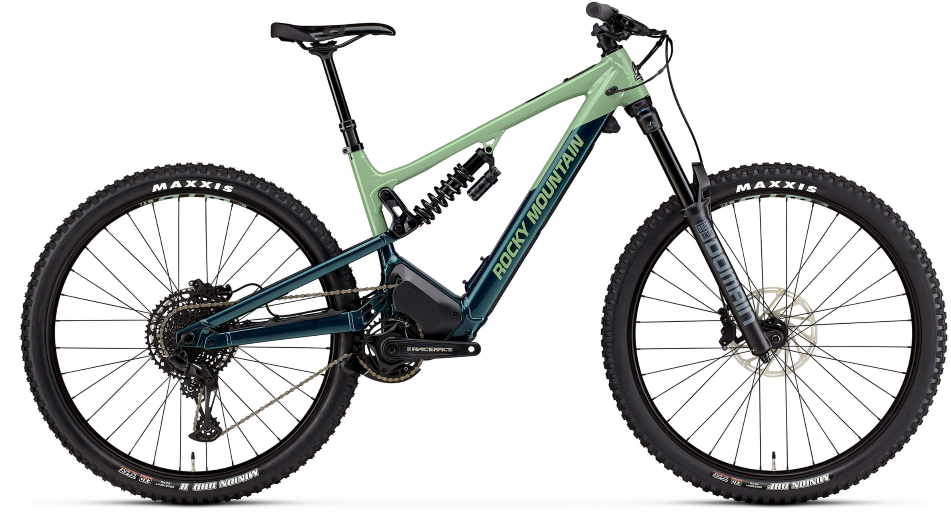

Rocky Mountain Altitude Powerplay A30 Coil Sram
$6,199.00
Details
Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking. The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 587 | 612 | 639 | 673 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 75.5 | 75.5 | 75.5 | 75.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Reach (mm) | 425 | 450 | 475 | 508 |
| Stack (mm) | 629 | 628 | 638 | 652 |
| Standover Height (mm) | 834 | 832 | 831 | 831 |
| Wheelbase (mm) | 1210 | 1237 | 1264 | 1301 |
| Frame Size | Measurements |
|---|---|
| Small | 157.5 - 170 cm / 5’2" - 5’7" |
| Medium | 167.5 - 177.5 cm / 5’6" - 5’10" |
| Large | 175 - 188 cm / 5’9" - 6’2" |
| X-Large | 185.5 - 198 cm / 6’1" - 6’6" |
Specs
| Frame | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Domain RC 170mm | 44mm Offset |
| Rear Shock | Marzocchi Bomber CR | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
| Hubs |
Front Hub: Rocky Mountain Sealed Boost 15mm Rear Hub: Novatec D462 Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Tires | F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
| Bottom Bracket | Shimano SM-BBMT500 |
| Crankset | Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Shifters | Shimano Deore 11spd |
| Rear Derailleur | Shimano Deore 11spd |
| Cassette/Freewheel | Shimano Deore 11-51T 11spd |
| Chain | KMC X11-1 |
| Brakes | Shimano MT4120 4 Piston | Metal Pads | F:Shimano RT64 203mm | R:Shimano RT64 203mm |
| Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips | Rocky Mountain Lock On Light |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt 142 |
| Motor | Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) |
| Charger | Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green/Green / Small / 29-inch | 770416476774 | B0309SM1CA |
| Green/Green / Medium / 29-inch | 770416476873 | B0309MD1CA |
| Green/Green / Large / 29-inch | 770416476972 | B0309LG1CA |
| Green/Green / X-Large / 29-inch | 770416477078 | B0309XL1CA |
