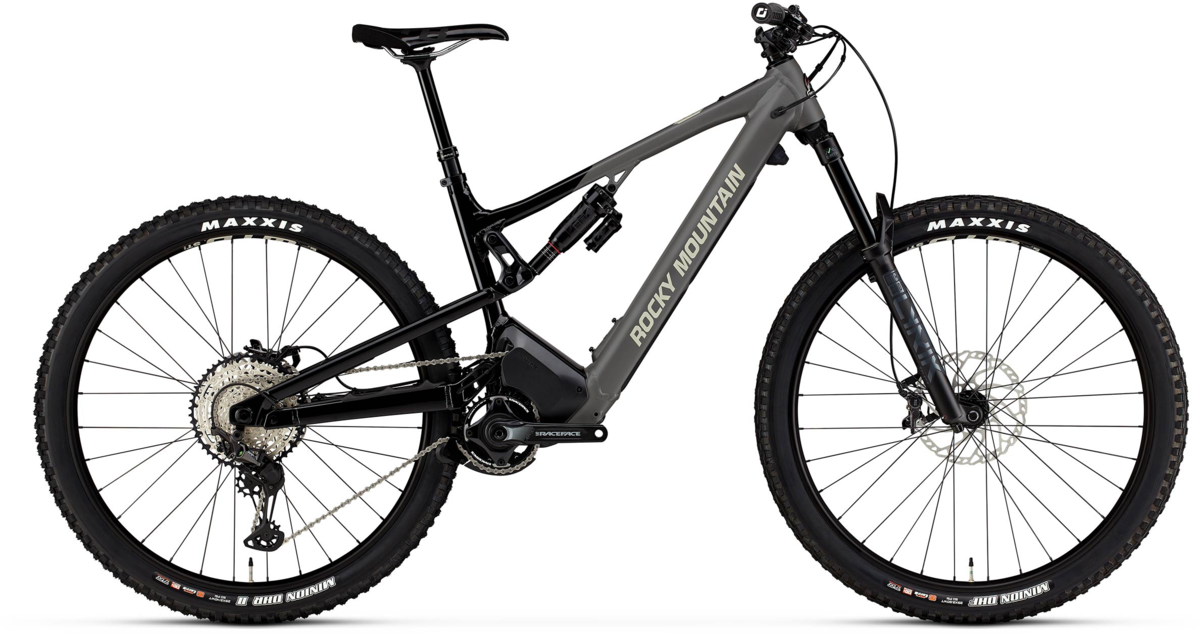

Rocky Mountain Instinct Powerplay A70 Shimano
$7,999.00
Details
The Instinct Powerplay is built for exploration. With versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
| Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
| Head Tube Length (mm) | 105 | 115 | 115 | 130 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
| Reach (mm) | 432 | 457 | 482 | 512 |
| Stack (mm) | 624 | 624 | 632 | 646 |
| Standover Height (mm) | 819 | 818 | 817 | 818 |
| Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
| Frame Size | Measurements |
|---|---|
| Small | 157.5 - 170 cm / 5’2” - 5’7” |
| Medium | 167.5 - 177.5 cm / 5’6” - 5’10” |
| Large | 175 - 188 cm / 5’9” - 6’2” |
| X-Large | 185.5 - 198 cm / 6’1” - 6’6” |
Specs
| Frame | FORM™ Alloy. Integrated Display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate. 140mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Pike Select RC 150mm | 42mm Offset |
| Rear Shock | RockShox Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape | Valves Incl |
| Hubs |
Front Hub: Rocky Mountain Sealed Boost 15mm Rear Hub: DT Swiss Hybrid 370 Boost 148mm |
| Spokes |
Front: DT Swiss Champion 2.0 Rear: DT Swiss Alpine 2.3/2.0 |
| Tires |
Front: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
| Bottom Bracket | FSA BB89.5 24mm |
| Crankset | Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cassette/Freewheel | Shimano SLX 10-51T |
| Chain | Shimano M7100 |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT66 203mm | R: Shimano RT66 203mm |
| Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm |
| Saddle | WTB Volt Race 142 |
| Accessories & Extras | Rocky Mountain Micro Remote |
| Motor | Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency Classe 1 eMTB System | Designed in Canada |
| Battery | 720 Wh Removable Integrated Li-Ion | xxx g |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black/Grey/Beige / Small / 29-inch | 770416471274 | B0301SM2CA |
| Black/Grey/Beige / Medium / 29-inch | 770416471472 | B0301MD2CA |
| Black/Grey/Beige / Large / 29-inch | 770416471670 | B0301LG2CA |
| Black/Grey/Beige / X-Large / 29-inch | 770416471878 | B0301XL2CA |
| Yellow/Brown / Small / 29-inch | 770416471175 | B0301SM1CA |
| Yellow/Brown / Medium / 29-inch | 770416471373 | B0301MD1CA |
| Yellow/Brown / Large / 29-inch | 770416471571 | B0301LG1CA |
| Yellow/Brown / X-Large / 29-inch | 770416471779 | B0301XL1CA |
